Keyfeatures
Movable Tow Bar – Enables controlled towing and accurate positioning during hangar and ramp moves.
Stackable Construction – Dolly frames stack to reduce storage footprint between tasks.
Caster System with Parking Brake – Two swivel and two fixed heavy-duty casters provide maneuverability and safe holding.
Skydrol-Resistant Finish – Protective coating resists hydraulic fluids for reliable service life.
Optional Strut Fixation – Dedicated adapters and clamp boxes secure A330/A340 and A300 gear during R/I tasks.
Highlights

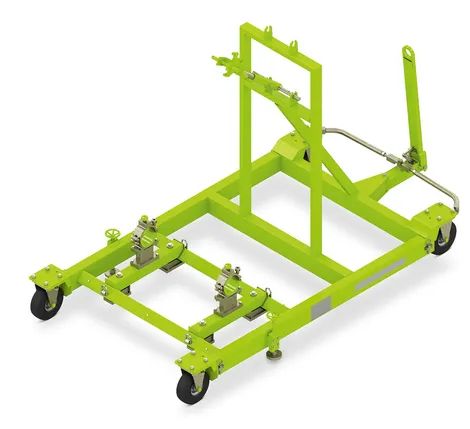

LGD dollies standardize safe handling of Airbus landing gear from A300 through A380-900 and the A320-family.
Airbus
A300 • A330 • A340 • A380-900 • A318 • A319 • A320 • A321 (incl. NEO)
Application Cases
Wide-Body Gear Transport – A300 • A330 • A340 • A380-900 gear without wheels and brakes.
A320 Family Storage & Transport – A318/A319/A320/A321 frames for MLG compressed and NLG extended.
Configuration Options
Safety & Operation
Movable tow bar provides controlled towing and precise docking of the gear frame.
Four axle bearings support stable load distribution for secure handling.
Factory proof-load at 150 % of nominal capacity is documented for each unit.
Holding device prevents nose-gear tilting on the A380-900 NLG variant.
Maximum towing speeds: 3 km/h with gear and 6 km/h without gear.
Mobility & Transport
Stackable design optimizes hangar storage and logistics.
Two swivel and two fixed casters allow easy maneuvering; foot-operated brake holds position.
Standard 76 mm tow-eye interfaces with common airport tractors.
Durability & Corrosion Protection
Welded steel frame withstands repeated transport and storage cycles.
Skydrol-resistant paint protects against hydraulic fluid exposure.
Operational temperature range 0 °C to +40 °C supports year-round use.
Why RH Aero?
Proven Control—Fleet Flexibility
LGD dollies couple documented proof-load performance with purpose-built frames for Airbus fleets. Optional fixation tools, secure clamping, and stackable architecture streamline removal, installation, and storage. Standardized documentation and configurable variants help airlines and MROs maintain safety, availability, and repeatable results across programs.
