Supplemental-cooling systems on the Airbus A350 and A380 use Galden® heat-transfer fluid and nitrogen back-pressure, so they require specialist ground equipment rather than a generic hydraulic cart. RH Aero’s line, engineered by TEST-FUCHS and supported through our worldwide service-centre network, covers every task, from a full system drain to a quick top-up. For the A350 we supply the fully automatic SCST1 cart and the compact SCST1-TU hand-pump unit, while the A380 is served by the SCSR1-1M1 dual-circuit refill device. All three tools are Airbus-certified under ATA 21-59 and operate between –30 °C and +50 °C, ensuring reliable performance in any hangar or ramp environment.
Use Cases
Supported aircraft
- A350-900 / A350-1000 with SCST1-FD or SCST1-FD-D for full cycles and SCST1-TU for small-volume top-ups.
- A380-800 with the SCSR1-1M1 automated refill unit.
Typical operations
- Scheduled ATA 21-59 fluid replacement and nitrogen bleed during heavy checks.
- Post-repair refills after component change.
- Quick line-maintenance top-ups using the hand-pump unit when power is unavailable.
Benefits
Fully automated A350 service: The SCST1 cart carries out fill, drain, bleed, replenish and empty cycles, cutting labour and preventing spills.
Task interruption and re-entry: Technicians can pause midway for a nitrogen boost and resume without restarting, saving time and fluid.
Drive options to suit any ramp: Choose the plug-in electric for zero-emission hangar work or the diesel/electric for autonomous flight-line operation.

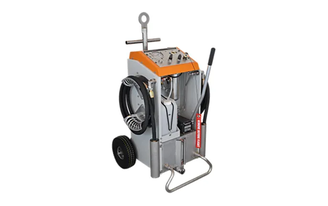

Hand-pump versatility: The 30 L SCST1-TU uses the same adapters as the main cart and requires no external power, making it ideal for remote stands.
A380 dual-circuit automation: The SCSR1-1M1 manages both supplemental-cooling loops from a single reservoir, with built-in self-tests and multi-voltage power compatibility.
Certified compliance: Every unit is listed in the Airbus GSE manual under ATA 21-59, giving you audit-ready documentation out of the box.
Why RH Aero
With TEST-FUCHS engineering and RH Aero global support, you get the only Airbus-approved supplemental-cooling equipment for A350 and A380 fleets, backed by onsite training, spare-parts availability and integration with our hydraulic power units and RAT testers. Move fluid, bleed air and log every parameter with confidence, wherever your aircraft lands.
Product Families
-
Supplemental Cooling System Service Units
