Keyfeatures
Wide Wheel Size Range – Handles ø 950–1500 mm for fleet coverage from narrow- to wide-body hubs.
Roller-Bearing Lift Arms – Bearings allow easy wheel rotation for bolt alignment and seating.
Hand-Operated Spindle – Manual lifting spindle delivers fine vertical control during changeouts.
Integrated Securing Chain – Chain stabilizes the wheel during lifting and transport to reduce handling risk.
Swivel Castors With Brakes – Braked, lockable castors enable controlled positioning around the gear bay.
Highlights
One family streamlines wheel and brake changes across A220/A320-class through A380 and 737 through 787 fleets.
Application Cases
Safety & Operation

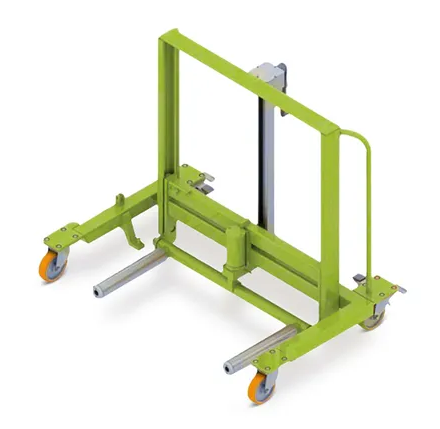

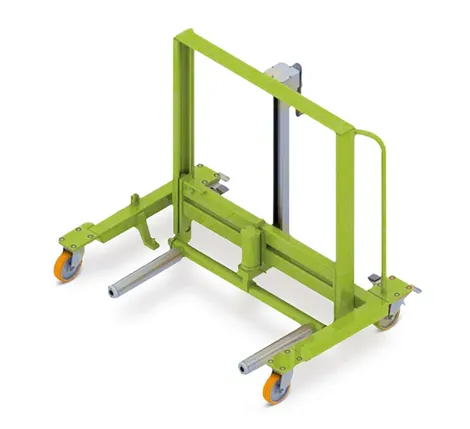

Wheel trolley enables safe, efficient removal and replacement of wheels and brake packs.
Lifting arms with roller bearings rotate wheels into the correct position for installation.
Hand-operated lifting spindle provides precise height adjustment at the hub.
Securing chain stabilizes the wheel for handling and transport.
Documentation set includes operation and maintenance manual with illustrated spares list, CoC, and EC declaration.
Mobility & Transport
Swivel castors with parking brake and directional lock support controlled moves on aprons and in hangars.
Optional tow bar and crane boom expand maneuvering and sling-handling capability.
Support frame for brakes enables secure transport of removed packs.
Durability & Corrosion Protection
Skydrol-resistant paint protects structures in hydraulic-fluid environments.
Mobile steel frame resists deformation under routine maintenance loads.
Rated for operation from −20 °C to +60 °C to suit ramp and shop conditions.
Configuration Options
Airbus
A220 (MLG only) • A300/A310 • A320 family • A330 • A340-200/-300 • A340-500/-600 • A350-900/-1000 • A380
Boeing
B707 • B727 • B747 • B757 • B767 • B777 • B787
Why RH Aero?
Ergonomic Control — Compliant Handling
Family-standardized trolleys with documented conformity reduce risk and time on jacks. Roller-bearing arms, manual spindle control, and securing chains improve precision and operator ergonomics. Optional tow bars, crane booms, and brake frames extend capability without complicating procedures. Proven compatibility across major Airbus and Boeing fleets simplifies planning and inventory.
