Keyfeatures

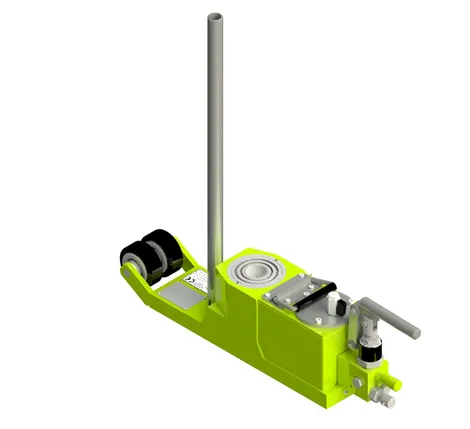

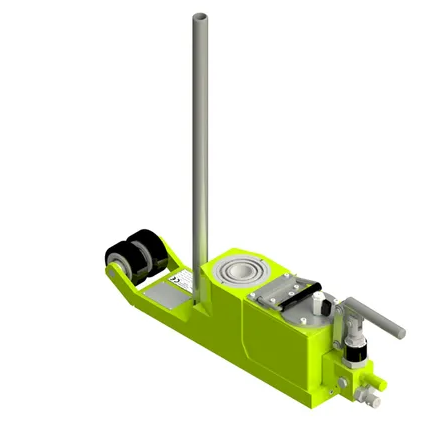

Fly-Away Design – Sub-30 kg weight* and a folding pump/transport handle let one person carry, load, and position the jack without special equipment.
Low Roll-Under Heights – Starting at just 110 mm, RH models slide under tight gear jacking points and fairings on modern single-aisles.
Manual High-Efficiency Pump – Integrated two-stage hand pump delivers fast piston travel and precise load control—no air cart required.
Rugged & Corrosion-Proof – Nitrided piston, galvanized hardware, and a Skydrol-resistant finish ensure long service life in the harshest climates.
150 % Proof-Load Certified – Every unit is factory-tested to EN 12312-19 and ANSI/ASME PALD; certificate shipped with the jack.
Common-Parts Architecture – Wheels, pump modules, and seals are shared across the range, simplifying spares inventory and training.
*Weight varies by capacity; ≤ 30 kg up to 10 t class.
Highlights
Broad Single-Aisle Coverage in One Case
OEM | Representative Aircraft |
Airbus | A220, A318 – A321, A320 neo family |
Boeing | 737 Classic, NG, MAX |
Embraer | E170/175, E190/195, E2 series |
Other | CRJ 700/900, Fokker 50/100, C-Series freighters |
Capacities span 5 t to 16 t, covering both nose- and main-gear applications on today’s narrow-body fleets.
Application Cases
AOG & Outstation Response – Fly-away kit deploys worldwide with crew baggage; jack operates anywhere, no ground power needed.
Transit & Line Checks – Fast tire, brake, and strut servicing at the gate keeps turn times tight.
Hangar Base Maintenance – Complements tripod jacks for localized nose-gear tasks during C-checks.
Configuration Options
Safety & Operation Enhancements
- Two-Stage Hand Pump – High-volume stage for rapid contact, high-pressure stage for controlled lift.
- Pressure-Relief Valve – Automatic overload protection against thermal expansion or mis-weighting.
- Proof-Load Interface – Compatible with HYDRO on-site load-test rigs for annual recertification.
Mobility & Transport
- Dual Hard-Rubber Wheels – Roll smoothly over jet-bridge gaps and ramp joints.
- Folding Pump/Tow Handle – Serves as a carry grip, pump lever, and short-range tow bar.
- Slim Chassis – Fits in standard fly-away containers and service-van drawers.
Load Management & Monitoring
- Quick-Attach Load Gauge (optional) – Real-time tonnage readout for added safety compliance.
- Extension Screw with Safety Collar – Fine height adjustment without compromising stability.
Why RH Aero?
Carry Less, Achieve More
RH Axle Jacks marry RH’s engineering with unmatched portability. You get certified safety, ultra-light handling, and a decade-long spare-parts guarantee—all backed by RH Aero Systems’ 24/5 AOG hotline and global service hubs. When every kilogram counts and every minute matters, RH is the jack your team can trust.
