Keyfeatures
Wide Capacity Band 10 – 55 t: One jack family supports every critical lift point on today’s wide‑body fleet.
Extended Vertical Reach: Up to 2 900 mm hydraulic stroke plus 1 050 mm screw extension handles deep‑gear wells and high‑tail lifts.
Dual‑Stage Manual Pumps + Optional Powered Drives: Rapid approach with coarse pump, fine control with high‑pressure stage
Triple‑Scale Pressure Indicator & Relief Valve: Instant load read‑out in bar/kN, psi/short‑ton and tonnes with integral overload protection.
Bore‑Honed, Hard‑Chrome Cylinders & Low‑Friction Seals: Precision machining and advanced sealing minimise wear, stick‑slip and corrosion.
Skydrol‑Resistant Two‑Part Coating: Chemical‑tough finish withstands aggressive hydraulic fluids and coastal climates.
150 % Factory Proof‑Load & Full Certification Pack: Each jack ships with proof‑load certificate, CoC and EC declaration for immediate audit compliance.
All‑Climate Reliability (–20 °C to +45 °C): Consistent hydraulic performance from Arctic ramps to desert line stations.
Highlights
Airbus: A300, A310, A330, A340, A350
Boeing: B747, B757, B767, B777, B787
Other OEMs: McDonnell Douglas DC-10, MD-11
Load Points: nose, body/wing, tail and inner‑wing stations with OEM‑approved adapters
Application Cases
Heavy / Base Checks (C‑ & D‑Level): Entire wide‑body lift for structural work
Landing‑Gear Change & Swing: Stable, repeatable positioning for main/nose gears
Engine & Pylon Maintenance: Secure wing‑tip / fuselage support during removal
AOG & Field Recovery: Contact us for Flay-Away options covering remote operations
Mixed‑Fleet Hangars: One jack family covers Airbus, Boeing and Comac programs
Training & SOP Alignment: Identical control layout across all capacities simplifies cross‑qualification
Configuration Options
Safety & Operational Enhancements
- Manual or Automatic Safety Lock Nut for secure load holding.
- Load Indication & Overload Warning Systems for advanced monitoring.
- Electronic Stroke Measurement System for precise lifting control.
Mobility & Transport
- Hydraulically Adjustable Heavy-Duty Swivel Castors for smooth positioning.
- Forklift Adapter & PowerCat Towing Interface for effortless movement.
- Fixed and Mobile Laser Target Systems for accurate alignment.
Automation & Load Management
- Electronic Jacking and Leveling System (EJAL) Compatibility – For synchronized aircraft lifting.
- Mechanical & Electronic Stroke Measurement – Ensures uniform lifting heights.
- Fast Lowering System & Auto-Leveling Options – For efficient and controlled load handling.
The TJ series' modular upgrade options provide scalability and adaptability, allowing MROs to future-proof their lifting solutions.
Why RH Aero?
Designed for MROs & Operators Handling Heavy Maintenance

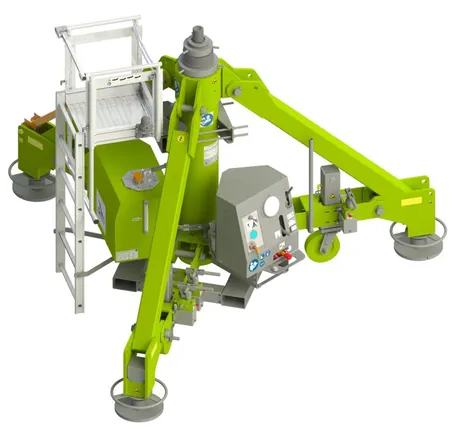

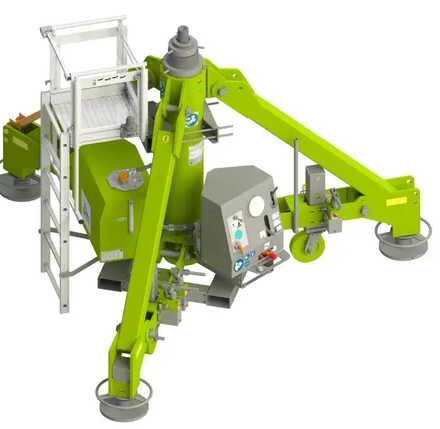

The TJ Tripod Jack Family is the leading solution for major airlines, MROs, and maintenance teams working on wide-body aircraft. Offering customization, automation, and best-in-class lifting performance, TJ jacks provide the stability, precision, and reliability needed for complex maintenance operations.
