Universal Load Limiter

Precise, Fail-Safe & Purpose-Built for Aircraft Debogging

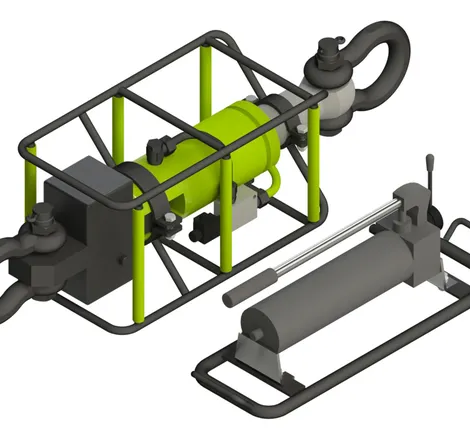

The SG 224-001 Load Limiter safeguards aircraft during debogging and controlled-towing operations by mechanically disconnecting the tow line the instant a pre-set load is exceeded. Adjustable from 0.3 t to 30 t in 0.1-t steps and reacting in < 100 ms, the device lets recovery crews work quickly while protecting the airframe from secondary damage. A strain-gauge dynamometer, on-board Li-ion power, and a handheld radio panel give operators live load data and instant feedback—anywhere on the ramp.

Explore Now Contact Now

Keyfeatures

Electro-Hydraulic Trip Protection – Mechanical release after ~100 mm stroke prevents overloads between 3 kN and 300 kN (0.3 t – 30 t).

Strain-Gauge Accuracy – Integrated dynamometer delivers precise load measurement for every tow cycle.

Handheld Radio Panel – Numeric load display, 10-segment LED bar (green/yellow/red) and acoustic warning signal as the release threshold is approached. Range up to 200 m.

Rapid Response – Typical actuation time < 100 ms ensures protection before structural limits are reached.

Resettable Design – Simply re-arm the unit after a release; no shear pins to replace, minimising downtime and spares.

All-Weather Readiness – Operates from –25 °C to +70 °C; IP 65 housing shields electronics and hydraulics from dust and water.

Highlights

Item

Description

Transportation box

1 200 × 725 × 495 mm storage & shipping case

Load Limiter assembly

55 kg unit with twin Crosby G-2140A-1½" shackles (30 t)

Hand-pump module

For manual pre-set adjustment & re-arming

Radio panel

0.6 kg die-cast aluminium handset, Li-ion powered, 30–50 h runtime

Cabling & shackles

Factory-matched for quick field setup

Application Cases

Runway-Excursion Recovery – Protects fuselage and gear while winches or tugs extract the aircraft.

Soft-Ground Debogging – Prevents over-pull when freeing bogged wheels in mud, snow or sand.

Controlled Towing Tests – Monitors and limits loads during qualification or training exercises.

Configuration Options

Parameter

Main Unit

Radio Panel

Adjustable release load

0.3 t – 30 t (0.1-t steps)

User-set via keypad

Response time

< 100 ms

–

Mechanical disconnect

≈ 100 mm stroke

–

Operating temp.

–25 °C … +70 °C

–25 °C … +70 °C

Power

Internal Li-ion battery

Internal Li-ion battery (30–50 h)

Protection class

IP 65

IP 65

Radio frequency / range

2.4 GHz / up to 200 m

2.4 GHz / up to 200 m

Weight

≈ 55 kg (excl. shackles)

≈ 0.6 kg

Why RH Aero?

Full Control, Zero Compromise

With millisecond response, radio-linked oversight and a resettable design, the SG 224-001 Load Limiter brings factory-grade safety to every debogging mission. Backed by RH Aero Systems’ global service network and a decade of spares assurance, it’s the smart choice for operators who refuse to gamble with airframe integrity.
