Keyfeatures
Adjustable Lifting Arms – Covers wheel sizes ø 270–1300 mm for broad fleet compatibility.
Roller-Bearing Support – Integrated bearings allow smooth rotation of wheels into correct alignment.
Hydraulic Pedal Pump – Pedal-operated lift cylinder leaves both hands free for safe working.
Integrated Wheel Bracket – Secures assemblies firmly during movement and positioning.
Four Steerable Castors – 360° revolving wheels provide maximum mobility in tight hangar spaces.
Highlights

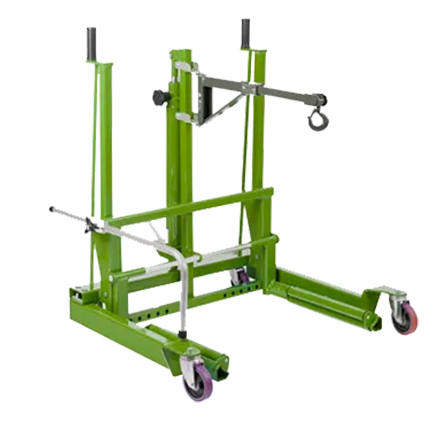

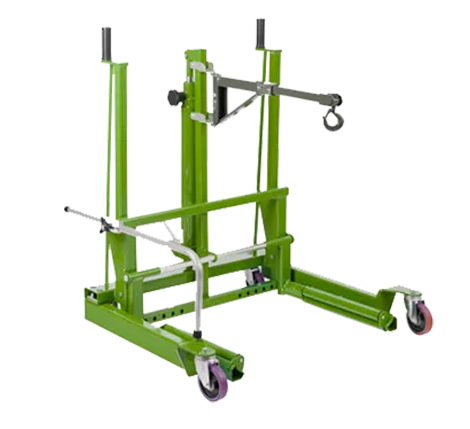

The WTA500AP enables precise and safe wheel and brake handling across nearly all commercial aircraft fleets except B737 and A220.
Airbus
All Wide and Narrow Body Aircraft (except A220)
Boeing
All Wide and Narrow Body Aircraft (except B737)
Application Cases
Wheel & Brake Handling – Removal, transport, and reinstallation for wide- and narrow-body fleets.
MRO Support – Line and base maintenance tasks across commercial aircraft platforms.
Configuration Options
Safety & Operation
Adjustable lifting arms adapt to different wheel diameters.
Bracket secures wheels during lifting and transport.
Hydraulic lift cylinder provides controlled raising and lowering.
Dead-man release ensures operator control when lowering loads.
Rated for maximum wheel weight of 347 kg (746 lbs).
Mobility & Transport
Four steerable nylon castors enable easy positioning.
Compact frame design eases transport through maintenance bays.
Optional crane arm and brake holder cradle expand handling range.
Durability & Corrosion Protection
Skydrol-resistant yellow RAL 1028 coating resists fluid exposure.
Robust welded steel frame withstands repeated heavy-duty operation.
Surface finish supports long-term use in hangar and ramp conditions.
Why RH Aero?
Engineered Mobility—Certified Safety
The WTA500AP delivers reliable, controlled handling of wheels and brakes across diverse fleets. With hydraulic lifting, castor-based mobility, and OEM-ready adaptability, it ensures safe, repeatable results in demanding maintenance environments. Optional accessories extend capability while standardized design supports efficiency and compliance for airlines, MROs, and FBOs.
